Kutu Profiller

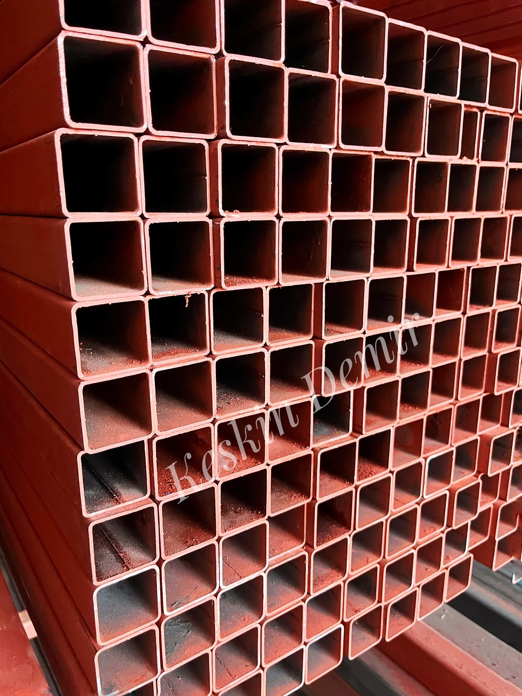

Demir kutu profiller, sıcak veya soğuk haddelenmiş sacların şekillendirilmesiyle üretilen, kare veya dikdörtgen kesitli çelik ürünlerdir. Yüksek mukavemet, düzgün yüzey kalitesi ve kaynaklanabilirlik özellikleriyle öne çıkmaktadır.
İnşaat, çelik konstrüksiyon, makine imalatı ve taşıyıcı sistemlerde güvenle kullanılan bu ürünler DIN 2395, TS 5317, TS EN 10219-2, TS EN 10305-5 normlarına uygun, standart olarak DC01 (DIN EN 10130), S185, S235JRH/J0H/J2H, S275J0H/J2H, S355J0H/J2H (DIN EN 10025) kalite çelik bantlardan yüksek frekans kaynağı (ERW) ile imal edilir.
|
Ebat(mm) |
Kg/Mt |
|---|---|
|
10x10x1,0 |
0,282 |
|
10x10x1,2 |
0,338 |
|
10x20x1,0 |
0,438 |
|
10x20x1,2 |
0,520 |
|
20x10x1,5 |
0,610 |
|
10x30x1,0 |
0,595 |
|
10x30x1,2 |
0,708 |
|
30x10x1,5 |
0,850 |
|
15x15x1,0 |
0,438 |
|
15x15x1,2 |
0,520 |
|
15x15x1,5 |
0,632 |
|
15x25x1,0 |
0,595 |
|
15x25x1,2 |
0,708 |
|
15x15x1,5 |
0,868 |
|
20x20x1,0 |
0,595 |
|
20x20x1,2 |
0,708 |
|
20x20x1,5 |
0,868 |
|
20x20x2,0 |
1,120 |
|
20x30x1,0 |
0,753 |
|
20x30x1,2 |
0,896 |
|
20x30x1,5 |
1,100 |
|
20x30x2,0 |
1,440 |
|
20x40x1,0 |
0,909 |
|
20x40x1,2 |
1,805 |
|
20x40x1,5 |
1,340 |
|
20x40x2,0 |
1,750 |
|
20x40x2,5 |
2,180 |
|
20x40x3,0 |
2,390 |
|
25x25x1,0 |
0,753 |
|
25x25x1,2 |
0,896 |
|
25x25x1,5 |
1,100 |
|
25x25x2,0 |
1,440 |
|
30x30x1,0 |
0,909 |
|
30x30x1,2 |
1,085 |
|
30x30x1,5 |
1,340 |
|
30x30x2,0 |
1,750 |
|
30x30x2,5 |
2,190 |
|
30x30x3,0 |
2,390 |
|
30x40x1,0 |
1,070 |
|
30x40x1,2 |
1,267 |
|
30x40x1,5 |
1,570 |
|
30x40x2,0 |
2,070 |
|
30x40x2,5 |
2,540 |
|
30x40x3,0 |
2,860 |
|
30x50x1,2 |
1,462 |
|
30x50x1,5 |
1,810 |
|
30x50x2,0 |
2,380 |
|
30x50x2,5 |
2,930 |
|
30x50x3,0 |
3,330 |
|
40x40x1,2 |
1,462 |
|
40x40x1,5 |
1,810 |
|
40x40x2,0 |
2,380 |
|
40x40x2,5 |
2,930 |
|
40x40x3,0 |
3,330 |
|
40x40x4,0 |
4,250 |
|
40x40x5,0 |
5,310 |
|
40x60x1,2 |
1,616 |
|
40x60x1,5 |
2,250 |
|
40x60x2,0 |
3,010 |
|
40x60x2,5 |
3,730 |
|
Ebat(mm) |
Kg/Mt |
|---|---|
|
40x60x3,0 |
4,280 |
|
40x60x4,0 |
4,820 |
|
40x60x5,0 |
6,430 |
|
40x80x1,5 |
2,730 |
|
40x80x2,0 |
3,640 |
|
40x80x2,5 |
4,500 |
|
40x80x3,0 |
5,220 |
|
40x80x4,0 |
6,760 |
|
40x80x5,0 |
8,130 |
|
40x100x2,0 |
4,300 |
|
40x100x2,5 |
5,350 |
|
40x100x3,0 |
6,500 |
|
40x100x4,0 |
7,870 |
|
50x50x1,5 |
2,250 |
|
50x50x2,0 |
2,660 |
|
50x50x2,5 |
3,290 |
|
50x50x3,0 |
3,760 |
|
50x50x4,0 |
4,820 |
|
50x50x5,0 |
6,430 |
|
50x100x2,0 |
4,850 |
|
50x100x2,5 |
5,680 |
|
50x100x3,0 |
6,680 |
|
50x100x4,0 |
8,650 |
|
50x100x5,0 |
10,500 |
|
60x60x1,5 |
2,720 |
|
60x60x2,0 |
3,640 |
|
60x60x2,5 |
4,500 |
|
60x60x3,0 |
5,220 |
|
60x60x4,0 |
6,760 |
|
60x80x2,0 |
4,210 |
|
60x80x2,5 |
5,210 |
|
60x80x3,0 |
6,160 |
|
60x80x4,0 |
8,020 |
|
60x80x5,0 |
9,700 |
|
60x120x2,0 |
5,520 |
|
60x120x2,5 |
6,860 |
|
60x120x3,0 |
8,040 |
|
60x120x4,0 |
10,500 |
|
60x120x5,0 |
12,800 |
|
70x70x2,0 |
4,300 |
|
70x70x3,0 |
6,160 |
|
70x70x4,0 |
8,020 |
|
70x70x5,0 |
9,700 |
|
80x80x2,0 |
4,920 |
|
80x80x2,5 |
6,100 |
|
80x80x3,0 |
7,100 |
|
80x80x4,0 |
9,280 |
|
80x80x5,0 |
11,300 |
|
80x100x3,0 |
8,040 |
|
80x100x4,0 |
10,500 |
|
80x100x5,0 |
12,800 |
|
80x160x4,0 |
14,310 |
|
80x160x5,0 |
17,730 |
|
80x160x6,0 |
21,150 |
|
100x100x2,0 |
6,300 |
|
100x100x2,5 |
7,840 |
|
100x100x3,0 |
8,990 |
|
100x100x,4 |
11,80 |
|
100x100x5,0 |
14,40 |
|
100x100x,6 |
17,390 |
